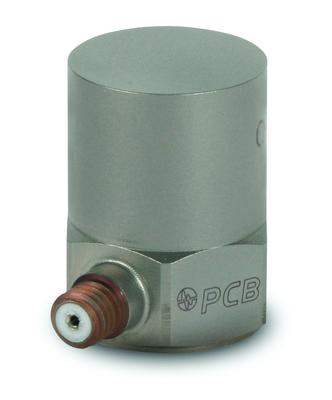

| Performance | ||
|---|---|---|
| Sensitivity (±15 %) | 3.1 pC/(m/s²) | |
| Measurement Range | ±14700 m/s² pk | |
| Frequency Range (+5 %) | 6000 Hz | [2] |
| Frequency Range (+10 %) | 7500 Hz | [2] |
| Frequency Range (+3 dB) | 8500 Hz | [2] |
| Resonant Frequency | ≥23 kHz | |
| Non-Linearity (600 g, 5890 m/s²) | ≤1 % | [1] |
| Non-Linearity | ≤3 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±58860 m/s² pk | |
| Temperature Range | -71 to +260 °C | |
| Temperature Response | See Graph %/°F | [3] |
| Base Strain Sensitivity | 0.006 (m/s²)/µε | [3] |
| Electrical | ||
| Capacitance | 930 pF | [3] |
| Insulation Resistance (at 500°F) | ≥100000000 Ohm | [3] |
| Insulation Resistance (at 70° F [21°C]) | ≥1000000000000 Ohm | |
| Output Polarity | Negative | |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Hex | 5/8 in | |
| Size - Height | 21.6 mm | |
| Weight | 21 gm | [3] |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
| Mounting Thread | 10-32 Female | |
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
|---|---|
| 081B05 | ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32) |
| ACS-1 | 校正データ |
| M081B05 | ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/M6x0.75) |
| 003C10 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ10FT(10-32/BNC) |
|---|---|
| 003C20 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ20FT(10-32/BNC) |
| 003C30 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ30FT(10-32/BNC) |
| 080A27 | ﾏｸﾞﾈｯﾄﾍﾞｰｽ |
| 422E51 | ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ |
| 422E52 | ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ |
| 422E53 | ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ |
| 482C54 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ICP/ﾁｬｰｼﾞ型対応) |
| 080A24 | ﾍﾟﾄﾛﾜｯｸｽ(4個入) |
|---|---|
| ACS-QC | 校正機器リスト |
| Electrical Isolation (Base) | 100000000 Ohm |
| Frequency Range | 5000 Hz |
| Frequency Range | 4000 Hz |
| Resonant Frequency | ≥17 kHz |
| Size - Height | 22.9 mm |
| Size - Hex | 15.9 mm |
| Electrical Connection Position | Side |
| Electrical Connector | Sealed Integral Cable |
