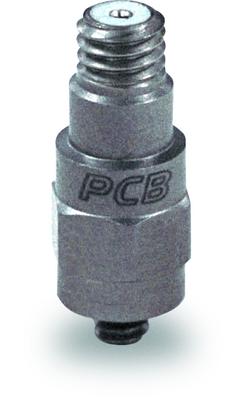

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 0.31 pC/(m/s²) | |
| Measurement Range | ±22600 m/s² pk | |
| Frequency Range (+5 %) | 12000 Hz | [2] |
| Frequency Range (+10 %) | 16000 Hz | [2] |
| Frequency Range (+3 dB) | 26000 Hz | [2] |
| Resonant Frequency | ≥50 kHz | |
| Non-Linearity (1600 g, 15700 m/s²) | ≤1 % | [1] |
| Non-Linearity | ≤2 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±98100 m/s² pk | |
| Temperature Range | -71 to +260 °C | |
| Temperature Response | See Graph %/°F | [3] |
| Base Strain Sensitivity | 0.02 (m/s²)/µε | [3] |
| Electrical | ||
| Capacitance | 485 pF | [3] |
| Insulation Resistance (at 500°F) | >100000000 Ohm | [3] |
| Insulation Resistance (at 70° F [21°C]) | >1000000000000 Ohm | |
| Output Polarity | Negative | |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Welded Hermetic | |
| Size - Hex | 7.1 mm | |
| Size - Height | 16.3 mm | |
| Weight | 2.0 gm | [3] |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Top | |
| Mounting Thread | 5-40 Male | |
| ACS-1 | 校正データ |
|---|
| 003C10 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ10FT(10-32/BNC) |
|---|---|
| 003C20 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ20FT(10-32/BNC) |
| 003C30 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ30FT(10-32/BNC) |
| 080A27 | ﾏｸﾞﾈｯﾄﾍﾞｰｽ |
| 422E51 | ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ |
| 422E52 | ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ |
| 422E53 | ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ |
| 482C54 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ICP/ﾁｬｰｼﾞ型対応) |
| 080B16 | 三軸ｱﾀﾞﾌﾟﾀ0.37" |
|---|---|
| ACS-QC | 校正機器リスト |
| Electrical Isolation (Base) | 100000000 Ohm |
| Frequency Range | 10000 Hz |
| Frequency Range | 13500 Hz |
| Resonant Frequency | >49 kHz |
| Size - Height | 18.3 mm |
| Size - Hex | 9.52 mm |
| Weight | 3.2 gm |
| Mounting Thread | M3 x 0.50 Male |
| Electrical Connection Position | Top |
| Electrical Connector | Sealed Integral Cable |
