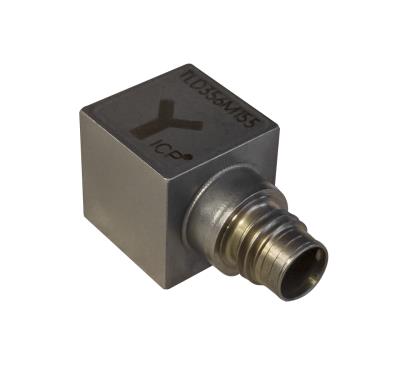

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 0.26 mV/(m/s²) | |
| Measurement Range | ±19620 m/s² pk | |
| Frequency Range (±5 %) (y or z axis) | 1.0 to 10000 Hz | |
| Frequency Range (±5 %) (x axis) | 1.0 to 6000 Hz | |
| Resonant Frequency | ≥70 kHz | |
| Broadband Resolution (1) | 0.08 m/s² rms | [2] |
| Non-Linearity | 1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±49050 m/s² pk | |
| Temperature Range (Operating) | -54 to +121 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Electrical | ||
| Excitation Voltage | 21 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 7 to 14 VDC | |
| Discharge Time Constant | 0.4 to 2 sec | |
| Settling Time (within 10% of bias) | <5 sec | |
| Spectral Noise (1 Hz) | 36720 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 7848 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 1964 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 980 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 11.4 mm | |
| Size - Length | 20.8 mm | |
| Size - Width | 11.4 mm | |
| Weight (without cable) | 4.5 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting | Adhesive | |
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
|---|---|
| ACS-1T | 校正データ |
| Output Bias Voltage | 7.5 to 15.0 VDC |
| Output Bias Voltage | 7.5 to 15.0 VDC |
| Output Bias Voltage | 7.5 to 15.0 VDC |
| Output Bias Voltage | 7.5 to 15.0 VDC |
