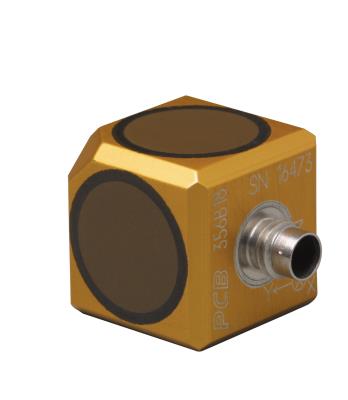

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 102 mV/(m/s²) | |
| Measurement Range | ±49 m/s² pk | |
| Frequency Range (±5 %) | 0.5 to 3000 Hz | |
| Frequency Range (±10 %) | 0.3 to 5000 Hz | |
| Resonant Frequency | ≥20 kHz | |
| Broadband Resolution (1) | 0.0005 m/s² rms | [2] |
| Phase Response (±5 °) (at 70°F [21°C]) | 2 to 2000 Hz | |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±5000 g pk | |
| Temperature Range (Operating) | -29 to +77 °C | |
| Temperature Response | See Graph %/°F | |
| Base Strain Sensitivity | 0.007 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤600 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.8 to 3.0 sec | |
| Settling Time (within 10% of bias) | <12 sec | |
| Spectral Noise (1 Hz) | 112 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 39 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 12 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 4.4 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Anodized Aluminum | |
| Sealing | Epoxy | |
| Size - Height | 20.3 mm | |
| Size - Length | 26.1 mm | |
| Size - Width | 20.3 mm | |
| Weight | 25 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting Thread | 10-32 Female | |
| 080A68 | 接着ﾏｳﾝﾄﾍﾞｰｽ |
|---|---|
| 081B05 | ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32) |
| ACS-1T | 校正データ |
| M081B05 | ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/M6x0.75) |
| 034G10 | ｹｰﾌﾞﾙ4線10FT(4PIN/BNC) |
|---|---|
| 034G20 | ｹｰﾌﾞﾙ4線20FT(4PIN/BNC) |
| 034G30 | ｹｰﾌﾞﾙ4線30FT(4PIN/BNC) |
| 010G10 | 4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ10FT(4ﾋﾟﾝ/BNC) |
| 010G20 | 4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ20FT(4ﾋﾟﾝ/BNC) |
| 010G30 | 4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ30FT(4ﾋﾟﾝ/BNC) |
| 080A27 | ﾏｸﾞﾈｯﾄﾍﾞｰｽ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C15 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付） |
| 482C16 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付） |
| 080A24 | ﾍﾟﾄﾛﾜｯｸｽ(4個入) |
|---|---|
| ACS-QC | 校正機器リスト |
| Mounting Thread | None - Adhesive Mount Only |
| 080A90 | Quick Bonding Gel |
| Electrical Isolation | >100000000 Ohm |
| Size - Height | 21.6 mm |
| Size - Length | 26.1 mm |
| Size - Width | 21.6 mm |
| Output Bias Voltage | 8.5 to 13 VDC |
| Output Bias Voltage | 8.5 to 13 VDC |
| Output Bias Voltage | 8.5 to 13 VDC |
| Output Bias Voltage | 8.5 to 13 VDC |
| Output Bias Voltage | 8.5 to 13 |
