Model: M607A11

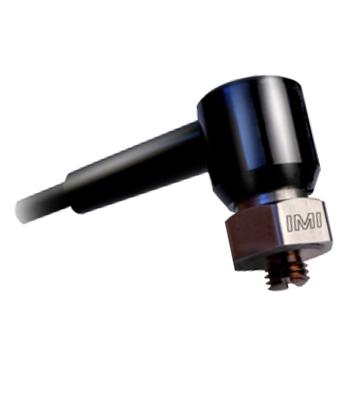

Platinum Stock Products; Low profile industrial ICP® accel, 100 mV/g, 0.5 to 10k Hz, side exit, 10-ft integral cable & swiveler base, single point ISO 17025 accredited calibration

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±15 %)	10.2 mV/(m/s²)	[1]
Measurement Range	±490 m/s²
Frequency Range (±3 dB)	0.5 to 10000 Hz
Resonant Frequency	25 kHz	[3]
Broadband Resolution (1)	3434 µm/sec²	[3]
Non-Linearity	±1 %	[2]
Transverse Sensitivity	≤7 %
Environmental
Overload Limit (Shock)	49050 m/s² pk
Temperature Range	-54 to +121 °C
Temperature Response	See Graph %/°F	[3]
Enclosure Rating	IP68
Electrical
Settling Time (within 1% of bias)	≤2 sec
Discharge Time Constant	≥0.3 sec
Excitation Voltage	18 to 28 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	<150 Ohm
Output Bias Voltage	8 to 12 VDC
Spectral Noise (10 Hz)	78.5 (µm/sec²)/√Hz	[3]
Spectral Noise (100 Hz)	49.1 (µm/sec²)/√Hz	[3]
Spectral Noise (1 kHz)	39.2 (µm/sec²)/√Hz	[3]
Electrical Isolation (Case)	>100000000 Ohm
Physical
Size - Hex	14 mm
Size - Height	24.6 mm
Weight (without cable)	31 gm	[7]
Mounting	Stud
Mounting Thread	1/4-28 Male	[5]
Mounting Torque (Stud)	4.1 to 5.4 Nm	[6] [8]
Mounting Torque (hex nut)	2.7 to 4.1 Nm
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Stainless Steel
Sealing	Welded Hermetic
Electrical Connector	Molded Integral Cable
Electrical Connection Position	Side
Cable Length	3.0 m
Cable Type	Polyurethane	[4]

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] Typical.
[4] Twisted shielded pair.
[5] 1/4-28 has no equivalent in S.I. units.
[6] Stud torque must exceed sensor hex nut torque to ensure proper dismantling.
[7] Measured with mounting stud.
[8] 1/8" hex Allen key required for English version, 3mm hex Allen key required for metric version.
[9] See PCB Declaration of Conformance PS023 or PS060 for details.

Accessories:

標準付属アクセサリ

080A156	ﾏｳﾝﾄﾍﾞｰｽ
ICS-2	校正データ

Optional Versions:

( EX ) Hazardous Area Approval- contact factory for specific approvals

Hazardous Area Approval	EEx nL IIC 1T4, -40 = Ta = 121°C, II 3 G
Hazardous Area Approval	Ex ia IIC T4, AExia IIC, T4
Hazardous Area Approval	Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4
Hazardous Area Approval	Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I
Hazardous Area Approval	EEx nL IIC T4, -40 ° C ≤ Ta ≤ 121 ° C, II 1 G

( M ) Metric Mount

Accessories:

M080A159A

Accessory for IMI Sensors Product

( TO ) Temperature Output

Electrical Connections (Black)	Ground
Electrical Connections (Red)	Acceleration Output
Electrical Connections (White)	Temperature Output
Electrical Connector	Molded Integral Cable
Temperature Output Range	+2 to +121 °C
Temperature Scale Factor	+10 mV/°C

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
