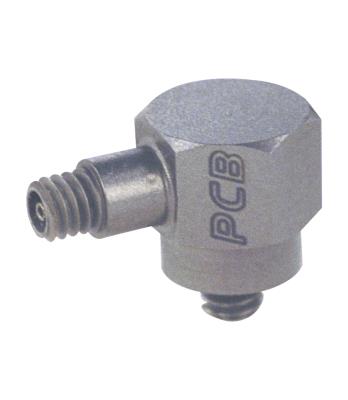

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 10.2 mV/(m/s²) | |
| Measurement Range | ±491 m/s² pk | |
| Frequency Range (±5 %) | 0.5 to 10000 Hz | |
| Frequency Range (±10 %) | 0.3 to 12000 Hz | |
| Frequency Range (±3 dB) | 0.2 to 20000 Hz | |
| Resonant Frequency | ≥35 kHz | |
| Phase Response (±5 °) (at 70°F [21°C]) | 2 to 6000 Hz | |
| Broadband Resolution (1) | 0.0015 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | [3] |
| Environmental | ||
| Overload Limit (Shock) | ±49050 m/s² pk | |
| Temperature Range (Operating) | -54 to +93 °C | [4] |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | <0.05 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤300 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.8 to 2.4 sec | |
| Spectral Noise (10 Hz) | 157 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 49 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 14.7 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Weight | 2.0 gm | [2] |
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Welded Hermetic | |
| Electrical Connector | 5-44 Coaxial | |
| Electrical Connection Position | Side | |
| Mounting Thread | 5-40 Male | |
| Mounting Torque | 90 to 135 N-cm | |
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
|---|---|
| M080A15 | |
| ACS-1 | 校正データ |
| 002P10 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC) |
|---|---|
| 002P20 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC) |
| 002P30 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC) |
| 018C10 | ﾋﾞﾆｰﾙｹｰﾌﾞﾙ10FT(5-44/BNC) |
| 018C20 | ﾋﾞﾆｰﾙｹｰﾌﾞﾙ20FT(5-44/BNC) |
| 018C30 | ﾋﾞﾆｰﾙｹｰﾌﾞﾙ30FT(5-44/BNC) |
| M080A30 | |
| 480C02 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 480E09 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付) |
| 482A21 | 1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| M080B16 | |
|---|---|
| 080A24 | ﾍﾟﾄﾛﾜｯｸｽ(4個入) |
| ACS-QC | 校正機器リスト |
| 080A90 | Quick Bonding Gel |
| Broadband Resolution | 0.002 m/s² rms |
| Discharge Time Constant | 0.08 to 0.24 sec |
| Frequency Range | 2 Hz |
| Frequency Range | 3 Hz |
| Frequency Range | 5 Hz |
| Spectral Noise | 14.7 (µm/sec2)/√Hz |
| Spectral Noise | 49 (µm/sec2)/√Hz |
| Spectral Noise | 736 (µm/sec2)/√Hz |
| Spectral Noise | 245 (µm/sec2)/√Hz |
| Temperature Range | -54 to +121 °C |
| Electrical Isolation | >100000000 Ohm |
| Frequency Range | 10000 Hz |
| Frequency Range | 16000 Hz |
| Frequency Range | 8000 Hz |
| Resonant Frequency | 30 kHz |
| Size - Height | 14.0 mm |
| Size - Hex | 9.5 mm |
| Weight | 2.8 gm |
| Mounting Thread | M3 x 0.50 Male |
| M080A15 | Adhesive Mounting Base |
| Electrical Connection Position | Side |
