PCBセンサ・オンラインストア > 製品詳細 |

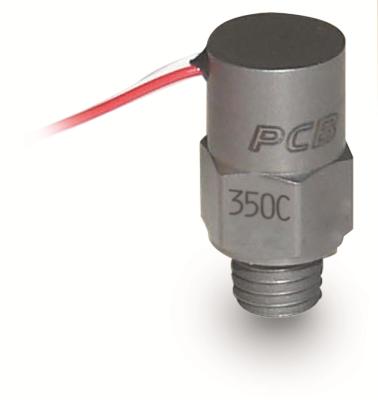

| Performance | ||
|---|---|---|
| Sensitivity (±30 %) | 0.05 mV/(m/s²) | |
| Measurement Range | ±98000 m/s² pk | |
| Frequency Range (±1 dB) | 0.4 to 10000 Hz | |
| Frequency Range (-3 dB) | 0.2 to 25000 Hz | [2] |
| Electrical Filter Corner Frequency (-3 dB) | 17 kHz | [1] [3] |
| Mechanical Filter Resonant Frequency | 35 kHz | [1] [4] |
| Resonant Frequency | ≥100 kHz | |
| Broadband Resolution (1) | 0.39 m/s² rms | [1] |
| Non-Linearity (per 1000 g (9810 m/s2)) | 2.0 % | |
| Transverse Sensitivity | ≤7 % | |
| Environmental | ||
| Overload Limit (Shock) | ±490000 m/s² pk | |
| Temperature Range (Operating) | -23 to +66 °C | |
| Temperature Range (Storage) | -40 to +93 °C | |
| Temperature Response | See Graph %/°F | [1] [5] |
| Base Strain Sensitivity | 0.02 (m/s²)/µε | [1] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 8 to 14 VDC | |
| Discharge Time Constant | 1.0 to 2.0 sec | [1] |
| Settling Time (within 10% of bias) | <10 sec | |
| Electrical Isolation (Case) | >1000000 Ohm | |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Hex | 9.5 mm | |
| Size - Height | 22.4 mm | |
| Weight | 5.4 gm | [1] |
| Electrical Connector | Integral Cable | |
| Cable Length | 3.05 m | |
| Cable Type | 031 Twisted Pair | |
| Mounting Thread | 1/4-28 Male | |
| Mounting Thread | M6 x 0.75 Male |
