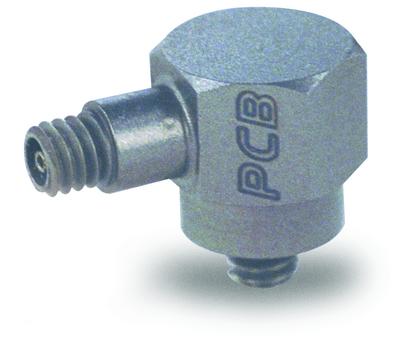

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 1.02 mV/(m/s²) | |
| Measurement Range | ±4900 m/s² pk | |
| Frequency Range (±5 %) | 1.0 to 10000 Hz | |
| Frequency Range (±10 %) | 0.7 to 18000 Hz | |
| Frequency Range (±3 dB) | 0.35 to 30000 Hz | |
| Resonant Frequency | ≥60 kHz | |
| Broadband Resolution (1) | 0.05 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | [3] |
| Environmental | ||
| Overload Limit (Shock) | ±98100 m/s² pk | |
| Temperature Range (Operating) | -73 to +163 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | ≤0.005 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.25 to 2.0 sec | |
| Settling Time (within 10% of bias) | <5 sec | |
| Spectral Noise (1 Hz) | 27468 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 6867 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 1766 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 628 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Size - Height | 10.9 mm | |
| Size - Hex | 5/16 in | |
| Weight | 2.0 gm | [2] |
| Sensing Element | Quartz | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Welded Hermetic | |
| Electrical Connector | 5-44 Coaxial | |
| Electrical Connection Position | Side | |
| Mounting Thread | 5-40 Male | |
| Mounting Torque | 90 to 135 N-cm | |
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
|---|---|
| 080A15 | 接着ﾏｳﾝﾄﾍﾞｰｽ |
| ACS-1 | 校正データ |
| 002P10 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC) |
|---|---|
| 002P20 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC) |
| 002P30 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC) |
| 080A30 | ﾏｸﾞﾈｯﾄﾍﾞｰｽ |
| 480C02 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 480E09 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付) |
| 482A21 | 1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| M080B16 | |
|---|---|
| 080A24 | ﾍﾟﾄﾛﾜｯｸｽ(4個入) |
| ACS-QC | 校正機器リスト |
| Mounting Thread | M3 x 0.50 Male |
| 080A90 | Quick Bonding Gel |
| Electrical Isolation | ≥100000000 Ohm |
| Frequency Range | 0.7 to 12000 Hz |
| Frequency Range | 1.0 to 8000 Hz |
| Frequency Range | 0.35 to 25000 Hz |
| Resonant Frequency | 50 kHz |
| Size - Height | 9.7 mm |
| Size - Hex | 3/8 in |
| Weight | 3.1 gm |
| Mounting Thread | M3 x 0.50 Male |
| M080A15 | Adhesive Mounting Base |
| Electrical Connection Position | Side |
