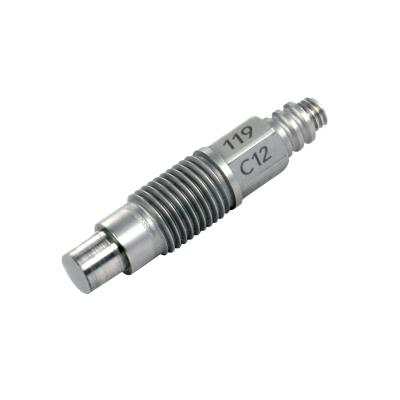

Model: M119C12
High pressure ballistic pressure sensor, 100k psi, 0.25 pC/psi, accel. comp, metric mount

■ Specifications

Performance
Sensitivity (±15 %)	0.036 pC/kPa
Sensitivity (±15 %)	0.036 pC/kPa
Measurement Range	690,000 kPa
Maximum Pressure	862000 kPa
Resonant Frequency	≥400 kHz
Rise Time (Reflected)	≤2 µ sec
Non-Linearity	≤2 % FS	[1]
Environmental
Maximum Shock	490000 m/s² pk
Acceleration Sensitivity	0.014 kPa/(m/s²)	[2]
Temperature Range (Operating)	-184 to 204 °C
Temperature Coefficient of Sensitivity	≤0.126 %/°C
Maximum Flash Temperature	2204 °C
Maximum Vibration	19600 m/s² pk
Electrical
Output Polarity (Positive Pressure)	Negative
Capacitance	20 pF	[2]
Insulation Resistance (at room temp)	≥1E12 Ohm
Insulation Resistance (at room temp)	≥1000000000000 Ohm
Physical
Sensing Element	Quartz
Housing Material	C-300
Diaphragm	C-300
Sealing	Epoxy
Electrical Connector	10-32 Coaxial Jack
Weight	14 gm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS158 for details.

Accessories:

標準付属アクセサリ

065A06	ｼｰﾙﾘﾝｸﾞ

Optional Versions:

( H ) Hermetic Seal

( P ) Positive Output Polarity

( W ) Water Resistant Cable
