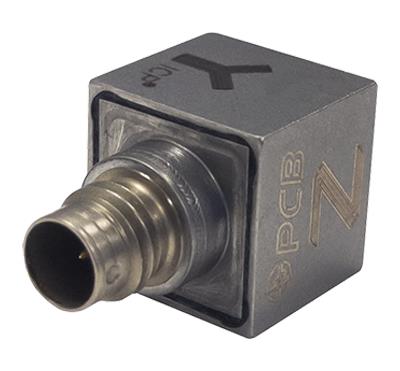

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 10.2 mV/(m/s²) | |
| Measurement Range | ±490 m/s² pk | |
| Frequency Range (+/-5 %) | 0.7 to 7000 Hz | |
| Frequency Range (+/-10 %) | 0.4 to 10000 Hz | |
| Resonant Frequency | ≥30 kHz | |
| Broadband Resolution (1) | 0.005 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤6 % | |
| TEDS Compliant (Per IEEE 1451.4) | Yes | |
| Environmental | ||
| Overload Limit (Shock) | ±49050 m/s² pk | |
| Temperature Range (Operating) | -54 to 85 °C | |
| Temperature Response | See Graph | [2] |
| Base Strain Sensitivity | .01 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.8 to 2.4 sec | |
| Settling Time (within 10% of bias) | ≤5 sec | |
| Spectral Noise (1 Hz) | 1226 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 392 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 147 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 39.2 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 10.2 mm | |
| Size - Length | 19.1 mm | |
| Size - Width | 10.2 mm | |
| Weight | 4.2 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting | Adhesive | |
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
|---|---|
| ACS-1T | 校正データ |
| Electrical Isolation | ≥100000000 Ohm |
| Size - Height | 11.8 mm |
| Size - Length | 19.8 mm |
| Size - Width | 11.8 mm |
| Weight | 5.7 gm |
