Model: J351B41

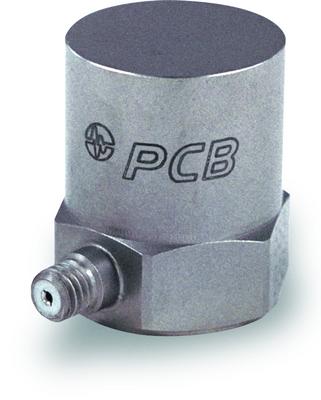

Cryogenic, quartz shear ICP® accel., 100 mV/g, 1 to 2k Hz, 10-32 side conn. (-320 to +250 F/-196 to +121 C) ground isolated

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	10.2 mV/(m/s²)
Measurement Range	±147 m/s² pk
Frequency Range (±5 %)	1 to 2000 Hz
Frequency Range (±10 %)	0.7 to 3500 Hz
Frequency Range (±3 dB)	0.35 to 5000 Hz
Resonant Frequency	≥15 kHz
Broadband Resolution	0.005 m/s² rms	[2]
Non-Linearity	1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±9810 m/s² pk
Temperature Range (Operating)	-196 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	<0.005 (m/s²)/µε	[2]
Electrical
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	3 to 10 VDC
Discharge Time Constant	>0.5 sec
Settling Time (within 10% of bias)	<5 sec
Spectral Noise (10 Hz)	216 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	58.9 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	15.7 (µm/sec²)/√Hz	[2]
Spectral Noise (1 Hz)	980 (µm/sec²)/√Hz	[2]
Electrical Isolation	None (Optional) Ohm
Physical
Size - Hex	19.1 mm
Weight	40 gm	[2]
Sensing Element	Quartz
Size - Height	21.6 mm
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Welded Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side
Mounting Thread	10-32 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32)
ACS-1	校正データ
M081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/M6x0.75)

推奨アクセサリ

003C10	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ10FT(10-32/BNC)
003C20	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ20FT(10-32/BNC)
003C30	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ30FT(10-32/BNC)
080A27480C02
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

080B11	三軸ｱﾀﾞﾌﾟﾀ1.25"
ACS-QC	校正機器リスト

Optional Versions:

( J ) Ground Isolated

Electrical Isolation	>100000000 Ohm
Frequency Range	3500 Hz
Frequency Range	2000 Hz
Resonant Frequency	13 kHz
Size - Height	22.9 mm
Size - Hex	19.1 mm

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
