PCBセンサ・オンラインストア > 製品詳細 |

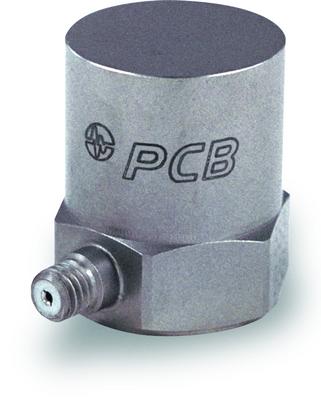

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 5.10 mV/(m/s²) | |
| Measurement Range | ±294 m/s² pk | |
| Frequency Range (±5 %) | 1 to 4000 Hz | |
| Frequency Range (±10 %) | 0.7 to 7000 Hz | |
| Frequency Range (±3 dB) | 0.35 to 10000 Hz | |
| Resonant Frequency | ≥22 kHz | |
| Broadband Resolution | 0.02 m/s² rms | [2] |
| Non-Linearity | 1 % | [1] |
| Transverse Sensitivity | ≤5 % | [3] |
| Environmental | ||
| Overload Limit | ±19620 m/s² pk | |
| Temperature Range | -196 to +121 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | <0.002 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 3 to 10 VDC | |
| Discharge Time Constant | >0.5 sec | |
| Spectral Noise (10 Hz) | 431 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 121 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 31 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 Hz) | 1960 (µm/sec2)/√Hz | [2] |
| Electrical Isolation | None (Optional) Ohm | |
| Physical | ||
| Size - Hex | 19.1 mm | |
| Weight | 20 gm | [2] |
| Sensing Element | Quartz | |
| Size - Height | 21.6 mm | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Welded Hermetic | |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
| Mounting Thread | 10-32 Female | |
| Electrical Isolation | >100000000 |
| Frequency Range | 6 |
| Frequency Range | 4 |
| Resonant Frequency | 18 |
| Size - Height | 22.9 |
| Size - Hex | 19.1 |
