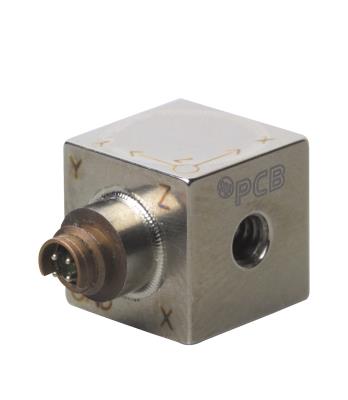

Model: HT356B21
Triaxial ICP® accel, 10 mV/g, 500 g, mini 4-pin conn, to +325 F (+163 C)

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (±5 %) (y or z axis)	2 to 10000 Hz
Frequency Range (±5 %) (x axis)	2 to 7000 Hz
Resonant Frequency	≥55 kHz
Broadband Resolution (1)	0.04 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±98100 m/s² pk
Temperature Range (Operating)	-54 to +121 °C	[3]
Temperature Response	See Graph %/°F	[2] [3]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	7 to 12 VDC
Discharge Time Constant	0.3 to 1.0 sec
Settling Time (within 10% of bias)	<3 sec
Spectral Noise (1 Hz)	9810 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	2943 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	981 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	490 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	10.2 mm
Size - Length	10.2 mm
Size - Width	10.2 mm
Weight	4 gm	[2]
Electrical Connector	8-36 4-Pin
Electrical Connection Position	Side
Mounting Thread	5-40 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A	接着ﾏｳﾝﾄﾍﾞｰｽ
080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/5-40)
081A90	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/5-40)
ACS-1T	校正データ
M081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/M3)

推奨アクセサリ

034K10	ｹｰﾌﾞﾙ10FT(ﾐﾆ4ﾋﾟﾝ/BNC)
034K20	ｹｰﾌﾞﾙ20FT(ﾐﾆ4ﾋﾟﾝ/BNC)
034K30	ｹｰﾌﾞﾙ30FT(ﾐﾆ4ﾋﾟﾝ/BNC)
080A30	ﾏｸﾞﾈｯﾄﾍﾞｰｽ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

039A08	取外しﾂｰﾙ(10.2mm)
080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( A ) Adhesive Mount

Accessories:

080A90	Quick Bonding Gel
080A109	Petro Wax

( HT ) High temperature, extends normal operation temperatures

Temperature Range

-54 to +163 °C

( J ) Ground Isolated

Electrical Isolation	>100000000 Ohm
Frequency Range (+5 %)	7000 Hz
Mounting	Adhesive
Size - Height	11.2 mm
Size - Length	10.2 mm
Size - Width	11.2 mm
Weight	4.5 gm

Accessories:

080A90	Quick Bonding Gel
034K10	Cables
080A109	Petro Wax

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
