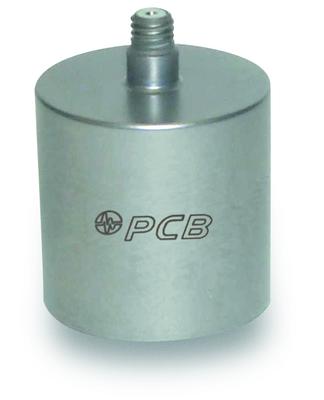

Model: 393B04
Seismic, miniature (50 gm), ceramic flexural ICP® accel., 1 V/g, 0.06 to 450 Hz, 10-32 top conn.

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	102 mV/(m/s²)
Measurement Range	±49 m/s² pk
Frequency Range (±5 %)	0.06 to 450 Hz
Frequency Range (±10 %)	0.05 to 750 Hz
Frequency Range (±3 dB)	0.02 to 1700 Hz
Resonant Frequency	≥2500 Hz
Broadband Resolution (1)	0.00003 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit (Shock)	±2950 m/s² pk
Temperature Range	-26 to +80 °C
Temperature Response	See Graph %/°F
Base Strain Sensitivity	≤0.005 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 10 mA
Output Impedance	<500 Ohm
Output Bias Voltage	7 to 12 VDC
Discharge Time Constant	5 to 15 sec
Settling Time	<100 sec
Spectral Noise (1 Hz)	2.9 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	1.0 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	0.4 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	0.4 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Flexural
Housing Material	Titanium
Sealing	Hermetic
Size - Diameter	25 mm
Size - Height	32.5 mm
Weight	50 gm	[2]
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Top
Mounting Thread	10-32 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32)
ACS-1	校正データ
ACS-4	校正データ
M081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/M6x0.75)

推奨アクセサリ

002C10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC)
002C20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC)
002C30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

080B11	三軸ｱﾀﾞﾌﾟﾀ1.25"
ACS-QC	校正機器リスト

Optional Versions:

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

Excitation Voltage	20 to 30
Output Bias Voltage	7.5 to 13

( TLA ) TEDS LMS International - Free Format

Excitation Voltage	20 to 30
Output Bias Voltage	7.5 to 13

( TLB ) TEDS LMS International - Automotive Format

Excitation Voltage	20 to 30
Output Bias Voltage	7.5 to 13

( TLC ) TEDS LMS International - Aeronautical Format

Excitation Voltage	7.5 to 13
Output Bias Voltage	7.5 to 13

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

Excitation Voltage	20 to 30 VDC
Output Bias Voltage	7.5 to 13 VDC

( W ) Water Resistant Cable

Electrical Connection Position	Top
Electrical Connector	Sealed Integral Cable
