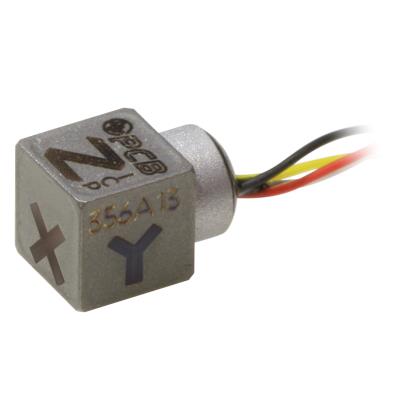

Model: 356A13
Triaxial, lightweight (1.0 gm) miniature, ceramic shear ICP® accel., 5 mV/g, 0.25" cube with flexible integral cable

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±20 %)	0.51 mV/(m/s²)
Measurement Range	±9810 m/s² pk
Frequency Range (±5 %) (y or z axis)	2 to 8000 Hz
Frequency Range (±5 %) (x axis)	2 to 5000 Hz
Frequency Range (+1 dB) (x axis)	≥8000 Hz
Resonant Frequency	≥50 kHz
Broadband Resolution (1)	0.03 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±98100 m/s² pk
Temperature Range (Operating)	-54 to +121 °C	[3]
Temperature Response	See Graph %/°F
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	7 to 12 VDC
Discharge Time Constant	0.24 to 1.0 sec
Settling Time (within 10% of bias)	<3 sec
Spectral Noise (1 Hz)	11772 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	2943 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	981 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	294 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	6.35 mm
Size - Length	9.53 mm
Size - Width	6.35 mm
Weight (without cable)	1.0 gm	[2]
Electrical Connector	Integral Cable
Electrical Connection Position	Side
Cable Termination	1/4-28 4-Pin Jack
Cable Length	1.5 m	[4]
Cable Type	099 Twisted 4-cond
Mounting	Adhesive

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[4] To ensure EMI and cross talk does not affect the noise specification, the integral cable is limited to 5 feet.
[5] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
ACS-1T	校正データ

推奨アクセサリ

034G05	ｹｰﾌﾞﾙ4線5FT(4PIN/BNC)
034G10	ｹｰﾌﾞﾙ4線10FT(4PIN/BNC)
034G20	ｹｰﾌﾞﾙ4線20FT(4PIN/BNC)
034G30	ｹｰﾌﾞﾙ4線30FT(4PIN/BNC)
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( HT ) High temperature, extends normal operation temperatures

Temperature Range

-54 to +163
