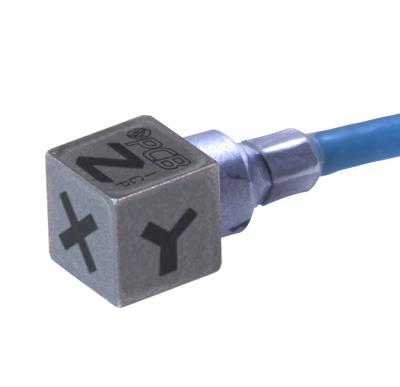

| Performance | ||
|---|---|---|
| Sensitivity (±20 %) | 0.025 mV/(m/s²) | |
| Measurement Range | ±196200 m/s² pk | |
| Frequency Range (±5 %) | 1.2 to 6000 Hz | |
| Frequency Range (±10 %) | 1 to 10000 Hz | |
| Resonant Frequency | ≥50 kHz | |
| Broadband Resolution (1) | 0.39 m/s² rms | [2] |
| Non-Linearity (10,000 g, 98,100 m/s²) | ≤1 % | [1] |
| Non-Linearity (20000 g, 196,200 m/s²) | ≤3 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±294300 m/s² pk | |
| Temperature Range (Operating) | -54 to +163 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | 0.5 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 14 VDC | |
| Discharge Time Constant | 0.4 to 1.2 sec | |
| Settling Time (within 10% of bias) | <3 sec | |
| Spectral Noise (1 Hz) | 132 mm/s2/√Hz | [2] |
| Spectral Noise (10 Hz) | 37.3 mm/s2/√Hz | [2] |
| Spectral Noise (100 Hz) | 11.7 mm/s2/√Hz | [2] |
| Spectral Noise (1 kHz) | 3.53 mm/s2/√Hz | [2] |
| Spectral Noise (10 kHz) | 1.28 mm/s2/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 6.35 mm | |
| Size - Length | 6.35 mm | |
| Size - Width | 6.35 mm | |
| Weight (without cable) | 0.8 gm | [2] |
| Electrical Connector | Integral Cable | |
| Electrical Connection Position | Side | |
| Cable Termination | 1/4-28 4-Pin Jack | |
| Cable Length | 1.5 m | |
| Cable Type | 019 4-cond Shielded | |
| Mounting | Adhesive | |
