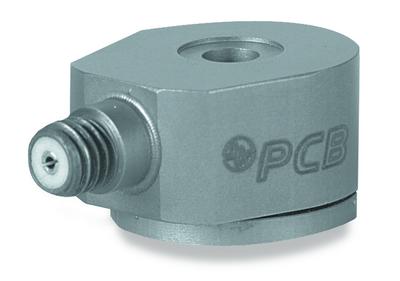

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 101.9 mV/(m/s²) | |
| Measurement Range | ±49 m/s² pk | |
| Frequency Range (±5 %) | 1 to 8000 Hz | |
| Frequency Range (±10 %) | 0.6 to 12000 Hz | |
| Frequency Range (±3 dB) | 0.3 to 17000 Hz | |
| Resonant Frequency | ≥30 kHz | |
| Broadband Resolution (1) | 0.001 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | [3] |
| Environmental | ||
| Overload Limit | ±49000 m/s² pk | |
| Temperature Range | -54 to +93 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | 0.49 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 4 mA | |
| Output Impedance | ≤1000 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.5 to 2.0 sec | |
| Spectral Noise (10 Hz) | 39 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 20 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 4.9 (µm/sec2)/√Hz | [2] |
| Electrical Isolation (Base) | >100000000 Ohm | |
| Physical | ||
| Size - Length | 24.1 mm | |
| Size - Width | 16.0 mm | |
| Weight | 11.2 gm | [2] |
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
| Mounting | Through Hole | |
| 039A22 | 取付ﾚﾝﾁ(7/64" hex) |
|---|---|
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
| 081B45 | 絶縁用キャップ |
| ACS-1 | 校正データ |
| 002C10 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC) |
|---|---|
| 002C20 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC) |
| 002C30 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC) |
| 003C10 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ10FT(10-32/BNC) |
| 003C20 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ20FT(10-32/BNC) |
| 003C30 | ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ30FT(10-32/BNC) |
| 480C02 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 480E09 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付) |
| 482A21 | 1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 080A24 | ﾍﾟﾄﾛﾜｯｸｽ(4個入) |
|---|---|
| ACS-QC | 校正機器リスト |
| M039A22 | Allen wrench for use with M3 thread |
| M081B45 | Accessory for Vibration Division Product |
| Electrical Connection Position | Side |
