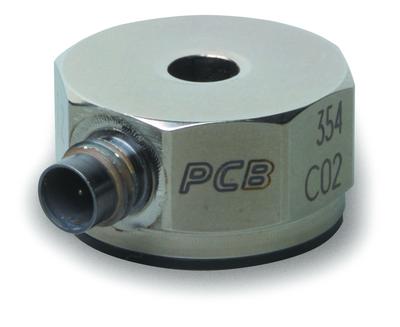

354C02 | PCBセンサ・オンラインストア東陽テクニカ

■ Specifications

Performance
Sensitivity (±10 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (±5 %)	0.5 to 2000 Hz
Frequency Range (±10 %)	0.3 to 4000 Hz
Frequency Range (±3 dB)	0.2 to 6000 Hz
Resonant Frequency	≥12 kHz
Broadband Resolution (1)	0.005 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±49050 m/s² pk
Temperature Range	-54 to +121 °C	[3]
Temperature Response	See Graph %/°F
Base Strain Sensitivity	0.005 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 12 VDC
Discharge Time Constant	0.8 to 2.0 sec
Settling Time (within 10% of bias)	<10 sec
Spectral Noise (1 Hz)	1472 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	226 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	98 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	49 (µm/sec²)/√Hz	[2]
Electrical Isolation	>100000000 Ohm
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Welded Hermetic
Size - Hex	20.7 mm
Size - Height	11.4 mm
Weight	15.5 gm	[2]
Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[4] TEDS option adds 1.0 VDC to bias voltage.
[5] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

039A23	取付ﾚﾝﾁ(5/32" hex)
080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
081B60	絶縁用キャップ
ACS-1T	校正データ

推奨アクセサリ

034G10	ｹｰﾌﾞﾙ4線10FT(4PIN/BNC)
034G20	ｹｰﾌﾞﾙ4線20FT(4PIN/BNC)
034G30	ｹｰﾌﾞﾙ4線30FT(4PIN/BNC)
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( A ) Adhesive Mount

Accessories:

080A90

Quick Bonding Gel

( HT ) High temperature, extends normal operation temperatures

Broadband Resolution	0.010 µm/sec² rms
Discharge Time Constant	0.4 to 1.0 sec
Excitation Voltage	22 to 30 VDC
Frequency Range (±5 %)	2 to 2000
Frequency Range (±3 dB)	0.5 to 6000
Frequency Range (±10 %)	1 to 4000
Output Bias Voltage	10 to 14.5 VDC
Spectral Noise	588 (µm/sec²)/√Hz
Spectral Noise	98 (µm/sec²)/√Hz
Spectral Noise	1176 (µm/sec²)/√Hz
Spectral Noise	2940 (µm/sec²)/√Hz
Temperature Range	-54 to +163 °C

( M ) Metric Mount

Accessories:

M081B60	Accessory for Vibration Division Product
M039A23	Allen wrench, 4mm hex

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC

( TLA ) TEDS LMS International - Free Format

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC

( TLB ) TEDS LMS International - Automotive Format

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC

( TLC ) TEDS LMS International - Aeronautical Format

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5

( W ) Water Resistant Cable
