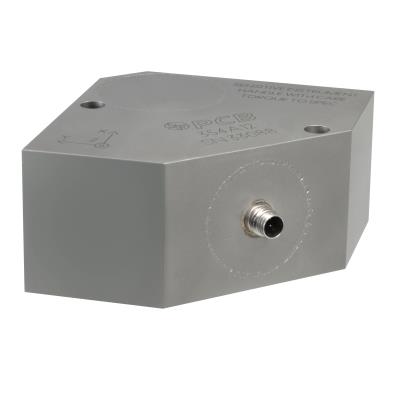

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 1019.4 mV/(m/s²) | |
| Measurement Range | 4.9 m/s² pk | |
| Frequency Range (±5 %) | 0.17 to 700 Hz | |
| Frequency Range (±10 %) | 0.12 to 1400 Hz | |
| Frequency Range (±3 dB) | 0.06 to 2500 Hz | |
| Resonant Frequency | 9 kHz | [2] |
| Phase Response (±5 °) | 1 to 700 Hz | |
| Electrical Filter Corner Frequency | 13.5 kHz | [2] |
| Electrical Filter Roll-off | 6 dB/octave | [2] |
| Broadband Resolution (1) | 98 µm/sec2 rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤7.0 % | |
| TEDS Compliant (Per IEEE 1451.4) | Yes | |
| Environmental | ||
| Overload Limit (Shock) | ±14715 m/s² pk | |
| Temperature Range | -45 to +82 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | <500 Ohm | |
| Output Bias Voltage | 8.7 to 12.7 VDC | |
| Discharge Time Constant | 2.9 to 7 sec | |
| Settling Time (within 10% of bias) | <60 sec | |
| Spectral Noise (1 Hz) | 12.7 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 3.9 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 1.5 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 1.0 (µm/sec2)/√Hz | [2] |
| Electrical Isolation (Case) | ≥100000000 Ohm | |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Stainless Steel | |
| Sealing | Hermetic | |
| Size - Height | 32 mm | |
| Weight | 645 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting | Through Hole | |
| 081M269 | |
|---|---|
| ACS-11T |
