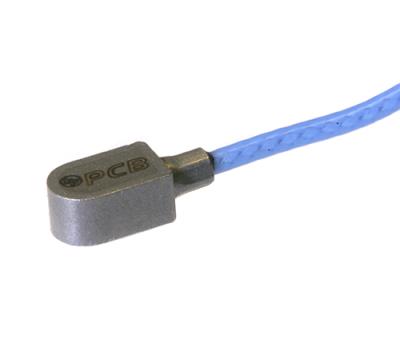

PCBセンサ・オンラインストア > 製品詳細 |
| Performance | ||
|---|---|---|
| Sensitivity (±20 %) | 0.025 mV/(m/s²) | |
| Measurement Range | ±196200 m/s² pk | |
| Frequency Range (±5 %) | 1.2 to 10000 Hz | |
| Frequency Range (±10 %) | 1 to 20000 Hz | |
| Resonant Frequency | ≥100 kHz | |
| Broadband Resolution (1) | 0.39 m/s² rms | [2] |
| Non-Linearity (10,000 g, 98,100 m/s²) | ≤1 % | [1] |
| Non-Linearity (20000 g, 196,200 m/s²) | ≤3 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±294300 m/s² pk | |
| Temperature Range (Operating) | -54 to +163 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.4 to 1.2 sec | |
| Settling Time (within 10% of bias) | <3 sec | |
| Spectral Noise (1 Hz) | 132 mm/s2/√Hz | [2] |
| Spectral Noise (10 Hz) | 37.3 mm/s2/√Hz | [2] |
| Spectral Noise (100 Hz) | 11.7 mm/s2/√Hz | [2] |
| Spectral Noise (1 kHz) | 3.53 mm/s2/√Hz | [2] |
| Spectral Noise (10 kHz) | 1.28 mm/s2/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Epoxy | |
| Size - Height | 2.54 mm | |
| Size - Length | 5.46 mm | |
| Size - Width | 3.43 mm | |
| Weight | 0.16 gm | [2] [3] |
| Electrical Connection Position | Side | |
| Cable Termination | 10-32 Coaxial Jack | |
| Cable Length | 0.9 m | |
| Cable Type | 030 Coaxial | |
| Mounting | Adhesive | |
| 039A37 | |
|---|---|
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
| ACS-1 | 校正データ |
