Model: 351B11

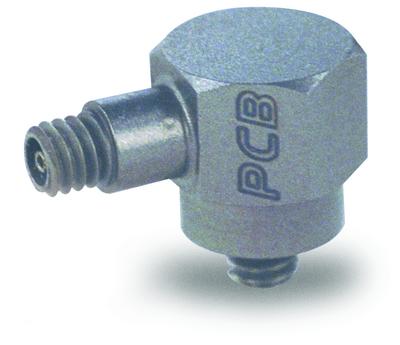

Cryogenic, miniature quartz shear ICP® accel., 5 mV/g, 1 to 10k Hz, 5-44 side conn. (-320 to +250F/-196 to +121C)

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	0.51 mV/(m/s²)
Measurement Range	±2943 m/s² pk
Frequency Range (±5 %)	1 to 10000 Hz
Frequency Range (±10 %)	0.7 to 15000 Hz
Frequency Range (±3 dB)	0.35 to 30000 Hz
Resonant Frequency	≥40 kHz
Broadband Resolution (1)	0.1 m/s² rms	[2]
Non-Linearity	1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±98100 m/s² pk
Temperature Range	-196 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	≤0.02 (m/s²)/µε	[2]
Electrical
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	3 to 10 VDC
Discharge Time Constant	0.5 to 2.0 sec
Spectral Noise (10 Hz)	3924 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	1177 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	294 (µm/sec²)/√Hz	[2]
Spectral Noise (1 Hz)	19620 (µm/sec²)/√Hz	[2]
Physical
Size - Hex	7.9 mm
Weight	2.0 gm	[2]
Sensing Element	Quartz
Size - Height	10.9 mm
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Electrical Connector	5-44 Coaxial
Electrical Connection Position	Side
Mounting Thread	5-40 Male
Mounting Torque	90 to 135 N-cm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

ACS-1	校正データ

推奨アクセサリ

002P10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC)
002P20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC)
002P30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC)
018C10	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ10FT(5-44/BNC)
018C20	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ20FT(5-44/BNC)
018C30	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ30FT(5-44/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

ACS-QC	校正機器リスト

Optional Versions:

( A ) Adhesive Mount

( J ) Ground Isolated

Electrical Isolation	>100000000 Ohm
Frequency Range	8 kHz
Frequency Range	15 kHz
Resonant Frequency	36 kHz
Size - Height	14.0 mm
Size - Hex	9.5 mm
Weight	3.2 gm

( M ) Metric Mount

Mounting Thread

M3 x 0.50 Male

( W ) Water Resistant Cable

Electrical Connection Position

Side

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
