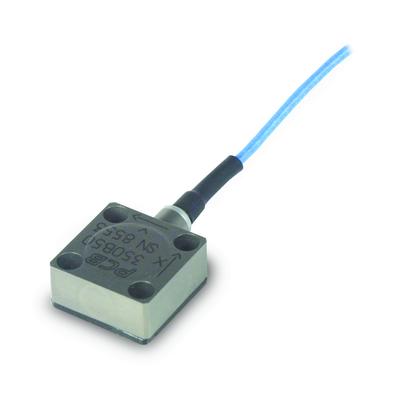

Model: 350B50
High amplitude, triaxial ICP® accel., 0.5 mV/g, 10k g range, w/built-in 2nd order low-pass filter (-3dB at 20 kHz)

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±30 %)	0.05 mV/(m/s²)
Measurement Range	±98000 m/s² pk
Frequency Range (±1 dB)	3 to 10000 Hz
Frequency Range (-3 dB)	1.5 to 20000 Hz	[3]
Resonant Frequency	≥60 kHz
Broadband Resolution (1)	0.29 m/s² rms	[2]
Non-Linearity (per 1000 g (9810 m/s²))	≤2 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±245000 m/s² pk
Temperature Range (Operating)	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Electrical
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 14 VDC
Discharge Time Constant	0.5 to 1.0 sec
Settling Time (within 10% of bias)	<5 sec
Electrical Isolation (Base)	>100000000 Ohm
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	8.2 mm
Size - Length	18.3 mm
Size - Width	18.3 mm
Weight (without cable)	8.0 gm	[2]
Electrical Connector	Integral Cable
Electrical Connection Position	Side
Cable Termination	1/4-28 4-Pin Jack
Cable Length	1.52 m
Cable Type	034 4-cond Shielded
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Electrical filter is a second order filter.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A197	ﾏｳﾝﾄﾍﾞｰｽ
081A112	絶縁用キャップ
ACS-14T	校正データ(衝撃)
ACS-22T	校正データ(周波数)

推奨アクセサリ

034G05	ｹｰﾌﾞﾙ4線5FT(4PIN/BNC)
034G10	ｹｰﾌﾞﾙ4線10FT(4PIN/BNC)
034G20	ｹｰﾌﾞﾙ4線20FT(4PIN/BNC)
034G30	ｹｰﾌﾞﾙ4線30FT(4PIN/BNC)
010G05	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ5FT(4ﾋﾟﾝ/BNC)
010G10	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ10FT(4ﾋﾟﾝ/BNC)
010G20	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ20FT(4ﾋﾟﾝ/BNC)
010G30	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ30FT(4ﾋﾟﾝ/BNC)
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

ACS-QC	校正機器リスト

Optional Versions:

No optional versions

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
