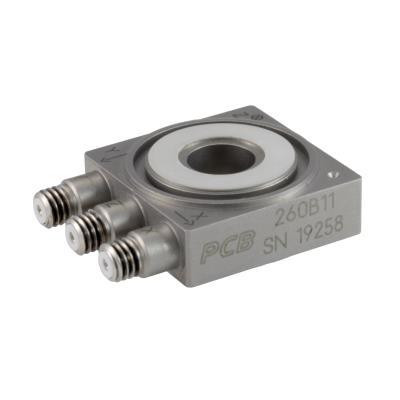

| Performance | ||
|---|---|---|
| Sensitivity (±15 %) (Z Axis) | 3.37 pC/N | [2] |
| Sensitivity (±15 %) (X or Y Axis) | 7.19 pC/N | [2] |
| Measurement Range (Z Axis) | 4.45 kN | |
| Measurement Range (X or Y Axis) | 2.22 kN | |
| Maximum Force (Z Axis) | 5.87 kN | |
| Maximum Force (X or Y Axis) | 2.94 kN | |
| Maximum Moment (Z Axis) | 21.7 Nm | |
| Maximum Moment (X or Y Axis) | 50.2 Nm | |
| Non-Linearity | ≤1 % FS | [1] |
| Cross Talk (between X and Y Axis) | ±3 % | |
| Cross Talk (between (X or Y Axis) and Z Axis) | ±5 % | |
| Environmental | ||
| Temperature Range | -73 to +177 °C | |
| Electrical | ||
| Capacitance (all channels) | 18 pF | [3] |
| Insulation Resistance (all channels) | ≥1000000000000 Ohm | |
| Output Polarity (in direction of markings) | Negative | |
| Electrical Isolation | ≥100000000 Ohm | |
| Physical | ||
| Preload | ≤22.24 kN | [4] |
| Stiffness (X or Y Axis) | 440 N/µm | [3] [5] |
| Stiffness (Z Axis) | 1755 N/µm | [3] [5] |
| Stiffness (RX or RY Axis) | 4.6E4 N*m/radian | [3] [5] |
| Stiffness (RZ Axis) | 5.3E4 N*m/radian | [3] [5] |
| Coupled Stiffness | 1.3 N*m/µm | [3] [5] |
| Weight | 24.10 gm | |
| Housing Material | Stainless Steel | |
| Sealing | Hermetic | |
| Electrical Connector (Quantity, 3) | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
