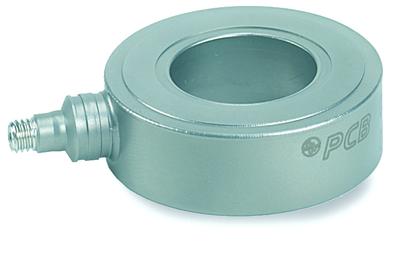

205C | PCBセンサ・オンラインストア東陽テクニカ

■ Specifications

Performance
Sensitivity (±15 %)	18.0 mV/kN
Measurement Range (Compression)	266.9 kN
Maximum Static Force (Compression)	311.4 kN
Broadband Resolution (1)	4.45 N-rms	[2]
Low Frequency Response	0.0003 Hz	[3]
Upper Frequency Limit	50000 Hz	[4]
Non-Linearity	≤1.5 % FS	[1]
Environmental
Temperature Range	-54 to +121 °C
Temperature Coefficient of Sensitivity	≤0.18 %/°C
Electrical
Discharge Time Constant (at room temp)	≥2000 sec
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 14 VDC
Spectral Noise (1 Hz)	0.44 N/√Hz	[2]
Spectral Noise (10 Hz)	0.14 N√Hz	[2]
Spectral Noise (100 Hz)	0.032 N/√Hz	[2]
Spectral Noise (1000 Hz)	0.00857 N/√Hz	[2]
Output Polarity (Compression)	Positive
Physical
Preload	53.379 kN
Stiffness	7 kN/µm	[2]
Size - Diameter	40.13 mm
Size - Height	12.95 mm
Size - Bolt Diameter	20 mm
Size - ID (Hole Diameter)	21.08 mm
Size - OD (Sensor)	40.13 mm
Size - Sensing Surface	34.93 mm
Weight	77 gm
Housing Material	Stainless Steel
Sealing	Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[5] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A82	潤滑剤
081A14
082B05
083B05

推奨アクセサリ

002C10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC)
002C20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC)
002C30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

HCS-QC	校正証明書

Optional Versions:

( M ) Metric Mount

Accessories:

M083B05	Pilot Bushing
M081A15	Mounting Stud, M16 x 1.50 x 1.650, BeCu

( N ) Negative Output Polarity

( W ) Water Resistant Cable

Electrical Connection Position	Side
Electrical Connector	Sealed Cable
