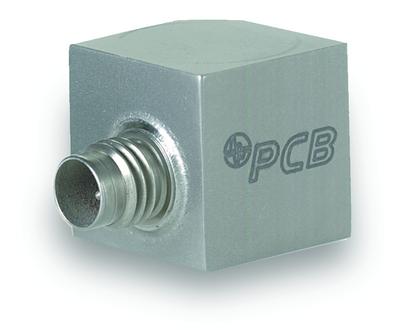

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 1.02 mV/(m/s²) | |
| Measurement Range | ±4900 m/s² pk | |
| Frequency Range (-5 %) (y or z axis) | 0.5 to 2500 Hz | [3] |
| Frequency Range (-5 %) (x axis) | 0.5 to 3000 Hz | [3] |
| Resonant Frequency | ≥25 kHz | |
| Filter Type | single pole | |
| Electrical Filter Roll-off | 6 dB/octave | |
| Broadband Resolution (1) | 0.005 m/s² rms | [2] |
| Electrical Filter Cutoff Frequency | 10 kHz | [1] |
| Non-Linearity (400 g, 3920 m/s²) | ≤1 % | [1] |
| Non-Linearity (500 g, 4900 m/s²) | ≤2 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±68600 m/s² pk | |
| Temperature Range (Operating) | -54 to +121 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | 0.01 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 1.0 to 2.0 sec | |
| Settling Time (within 10% of bias) | <5 sec | |
| Spectral Noise (1 Hz) | 1472 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 245 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 98 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 49 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 14.0 mm | |
| Size - Length | 20.3 mm | |
| Size - Width | 14.0 mm | |
| Weight | 10.5 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting Thread | 10-32 Female | |
| Mounting Torque | 113 to 225 N-cm | |
